BL Valve

NOTE: These valves are used in all models since March of 1973

To Connect Prior Models to New Valve:

F-10, F-12, E-24, E-22 & E-20 will exchange order part # 41610 (BL119) with

long arm.

For models H-2, F-1 & H-1, order part # 41611 (BL120) with short arm

and replace ½” elbow with 2″ x 4″ elbows.

For models F-5, F-52 order part # 41611 (BL120) and replace ½” elbow with 12″ x

3/4″ elbows.

For all other H-series waters, order part # 41611 (BL120) with short arm.

This also takes a ½” x 34″ reducing coupling.

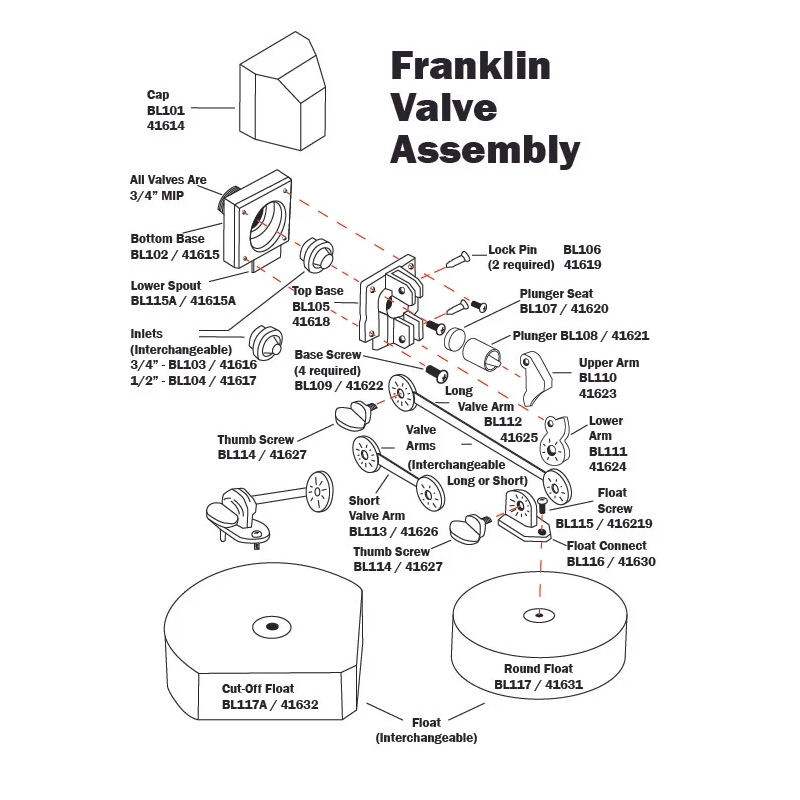

Additional Parts List:

BL119 41610 – 4″ complete valve arm & B1117 float assembly

BL12041611 – ½” complete valve arm & BL117 float assembly

BL121 41612 – 2″ complete less float & arm assembly

BL12241613-3/4″ complete less float & arm assembly

BL117P 41633 – Poly-Float

Valves Needed For Waterers:

AP-1       BL120 / 41643-2″ valve long arm & poly float

AP-8      BL119 / 41610 – ¾” valve with round float & long arm

AP-10   BL119/41644-3/4″ valve with poly float & long arm

E-20      BL119 / 41610 – ¾” valve with round float & long arm

F-1          BL12041611 – ½” valve with cut-off float & short arm

F-5          BL119 41610 – ¾” valve with BL117 float, long arm

F-8          BL119 41610-4″ valve with BL117 float, long arm

F-10       BL119 / 41610 – 4 valve with BL117 float, long arm

F-48       BL11941610-4″ valve with BL117 float

F-52       BL119 41610-¾” valve with BL117 round float, long arm (top tank)

F-52       BL120 / 41611 – ½” valve with BL117A cutoff float, short arm (bottom tank)

H-1         BL12041611 – 2″ valve with BL117A float, short arm

H-2         BL12041611 – ½” valve with BL117A float, short arm

PC-1      BL12041643 – 2″ valve with BL117P float, long arm

PC-2     BL120 / 41643B- ½” valve with BL117P float, long arm

PC-10 BL119 / 41610 – ¾” valve with BL117 float, long arm
